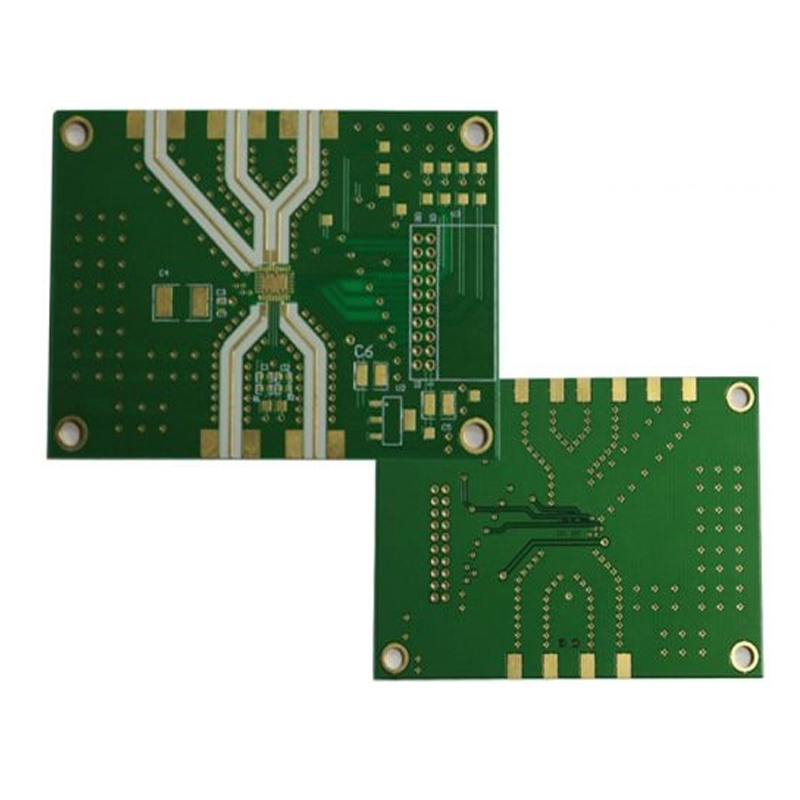

Custom High Frequency Printed Circuit Board Rogers4003 Rogers4350 PCB Board For HIFI Audio

Short Description:


  • Order Requests: Qty. PCB Specification.
  • Necessary Files: PCB Gerber, BOM, Pick&Place Files
  • Others: Assembly drawings, Other requirements
  • Product Detail

    Product Tags

    PRODUCT SPECIFICATION:

    Base Material: Rogers4350 Surface Finish: ENIG
    PCB Thickness: 1.6mm Solder Mask: Green
    PCB Size: 102* 110mm Silkscreen: White
    Layer Count: 2/ L Cu Thickness 35um (1oz)

    PHILIFAST is established as a leading PCB manufacturer and supplier, the products covers all kinds of PCBs, especially high- frequency pcbs, we have much enough high frequency material in our stock.

    We customize varies of Rogers pcbs for our customers around the world, for example, some high- frequency PCBs for applications in defense, military, wireless, telecommunication, and automotive industries.

    Mainly application from our customers is Rogers PCB.

    Rogers PCB material We Have In Stock

    Rogers 4350B

    Rogers 4003C

    Rogers 3003

    RT5880

    RT5870

    Varies of Rogers PCB We Made For Our Customer:

    1. 5G Microwave RF high frequency board

    2. RF HIGH-SPEED HIGH-FREQUENCY Board

    3. High Frequency 5G Antenna PCB

    4. Microwave Communication Circuit Board

    5. RF Control Circuit Board

    6. Power Splitter Board

    Main Product:

    36
    35
    14
    37

    Why us:

    1. We use Rogers, Taikangli, Yalong, Wangling and other brand materials to make high- frequency boards,and we’re equipped with special milling cutters to reduce burrs.

    2. Use plasma processing equipment to roughen the via and surface to increase the adhesion of PTH hole copper and solder mask ink.

    3. The production process accurately controls the dielectric layer thickness, copper thickness, line width and line spacing, and solder mask ink thickness to ensure that the solder mask value is within the specified tolerance range.

    PCB LEAD TIME:

      Sample Lead time Mass production lead time
    Single sided PCB 1~3 days 4~7 days
    Double sided PCB 2~5 days 7~10 days
    Multi-layer PCB 7~8 days 10~15 days
    PCB Assembly 8~15 days 2~4 weeks
    Delivery time 3-7 days 3-7 days

    About SHIPMENT:

    1. For small order,We usually use EXPRESS shipping to ensure the timely delivery. Such as FedEx, DHL, UPS, TNT, EMS, private lines, etc., those Express has better time effect, and won’t damage the goods. All shipping will be in time without too much delay.

    2. For mass production,We usually use Sea shipping to save your cost.

    3. Also, If you can appoint your own forwarder, we can ship the goods to your own carrier.
