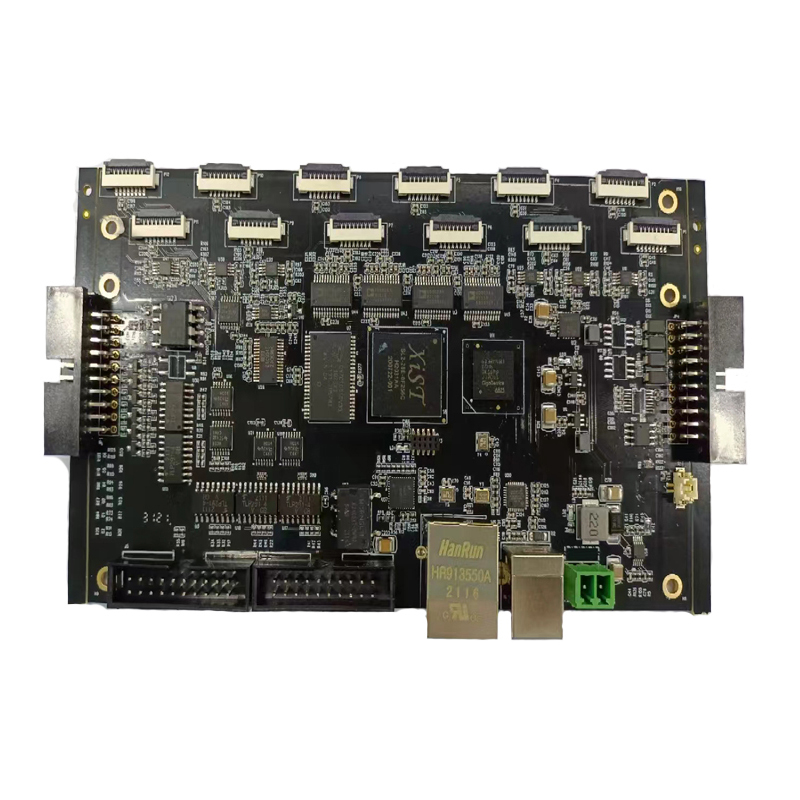

One-Stop Pcb Controller Board PCBA SMT Assembly Service For BGA Mounting 4 Layer Black Solder Mask Industrial Controller Circuit Board Pcba Manufacturing In China

Short Description:

  • Order Requests: Qty. PCB Specification.
  • Necessary Files: PCB Gerber, BOM, Pick&Place Files
  • Others: Assembly drawings, Other requirements
  • Product Detail

    Product Tags


    Base Material: FR4-TG140 Surface Finish: HASL(Lead Free)
    PCB Thickness: 1.6mm Solder Mask: Black
    PCB Size: 75*160mm Silkscreen: White
    Layer Count: 4/L Cu Thickness 35um(1oz)
    Mounting Type SMT+DIP SMT Package 0201,BGA, QFN
    Testing Service AOI,X-Ray,Function Test Application Industry controller

    Turnkey Sevices:

    1. PCB fabrication

    2. Turnkey PCBA: PCB+components+SMT and through-hole assembly+enclosure molding&housing

    Product Detail:


    Our Advantage:

    1, Programming and Functional test

    2, IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.

    3, Professional service. ISO SMT and through hole assembly, over 10 years experience.

    4, Certification: 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001

    5, Warranty period for PCBA: 2 years.


    Turnkey PCBA PCB+components sourcing+assembly+package
    Assembly details SMT and Thru-hole,PCB enclosure assembly
    Lead Time Prototype: 10-12 working days. Mass order: 18~20 working days
    Testing on products Flying Probe Test,E-Testing, X-ray Inspection, AOI Test, Functional test
    Quantity Min quantity: 1pcs. Prototype, small order, mass order
    Files type PCB: Gerber files(CAM, PCB, PCBDOC)
    Components: Bill of Materials(BOM list)
    Assembly: Pick&Place file, Assembly drawing
    PCB Panel Size Min size: 0.25*0.25 inches(6*6mm)
    Max size: 20*20 inches(500*500mm)
    PCB Solder Type Water Soluble Solder Paste, RoHS lead free
    Components details Passive Down to 01005 size
    BGA and QFN For Chip
    Double-sided SMT Assembly
    Fine Pitch to 0.8mils
    Part Removal and Replacement
    Component package Cut Tape,Tube,Reels,Loose Parts



    Layers 1-32 Layer
     2 Board material type FR4,Ceramic substrate board,aluminum based board, high-Tg, Rogers and more
     3 Compound material lamination 4 to 6 layers
     4 Maximum dimension 600 x 1200mm
     5 Board thickness coverage 0.2 to 6.00mm
     6 Minimum line width 3mil
    7 Minimum line space 3mil
    8 Outer layer copper thickness 8.75 to 175µm
    9 Inner layer copper thickness 17.5 to 175µm
    10 Drilling hole diameter (mechanical drill) 0.25 to 6.00mm
    11 Finished hole diameter (mechanical drill) 0.20 to 6.00mm
    12 Hole diameter tolerance (mechanical drill) 0.05mm
    13 Hole position tolerance (mechanical drill) 0.075mm
    14 Laser drill hole size 0.10mm
    15 Board thickness and hole diameter ratio 10:1
    16 Solder mask type Green, Yellow, Black, Purple, Blue, White and Red
    17 Minimum solder mask Ø0.10mm
    18 Minimum size of solder mask separation ring 0.05mm
    19 Solder mask oil plug hole diameter 0.25 to 0.60mm
    20 Impedance control tolerance ±10%
    21 Surface finish HASL(Lead Free), ENIG, immersion silver, gold plating, immersion tin and gold finger

    Fast Delivery:

    PCB In 12Hours
    PCBA In 3Days

    Main Products Application:
    *Medical Products
    * Automotive Products
    * Industrial Products
    * Communication Products(AVL/GPS/GSM Devices)
    * Consumer Electronics.

    PCB Assembly Procedures:

    * Program Management
    PCB Files → DCC → Program Organizing → Optimization → Checking
    * SMT Management
    PCB Loader → Screen Printer → Checking → SMD Placement → Checking → Air Reflow → Vision Inspection → AOI → Keeping
    * PCBA Management
    THT→Soldering Wave (Manual Welding) → Vision Inspection → ICT → Flash → FCT → Checking → Package → Shipment

    PHILIFAST provides you the best PCB manufacture and assembly experience
