Quick-turn PCBA Prototype Pcba Assembly Pcb Pcb Suppliers Professional Customized Pcba Assembly Prototype Pcb

Short Description:


  • MOQ:
  • Capability:: 25000 Square Inch per Month
  • Express PCB in 12hours:
  • Product Detail

    Product Tags

    PRODUCT SPECIFICATION:

    item value
    Supplier Type pcb factory
    Model Number Bv02
    Place of Origin China
    service Turkey service
    Board Thickness 0.2-3.2mm
    Surface Finishing HASL(Lead Free)
    Product name Controller PCB
    Color Green
    Type  SMT+DIP
    Base Material FR- 4
    Layer 2 Layers
    Min. Hole Size 0.0078" (0.2mm)

    About us:

    PHILIFAST provides full turn- key EMS services, including PCB customized, Components procurement, PCB assembly. also some additional services like IC chips programming, function test, mould injection customized and finished product assembly.

    Our services:

    1. PCBA assembly service.
    2. PCB design and production.
    3. Electronic products research and development.
    4. PCB and PCBA cloning service.
    5. Electronic components procurement services.
    6. Other electronic products retail and wholesale.

    PCB Assembly Capabilities:

    1. Order Qty.: Both prototyping and mass production.
    2. Files required: Bill of Materials(BOM),PCB(Gerber Files),Pick-N-Place File (XYRS)
    3. PCB Assembly Type:SMT (surface mount tech), THT (through hole tech), or Mixed.
    4. PCB Type:Rigid boards, Flex boards and rigid-flex boards.
    5. Other Assemblies:conformal coating, plastic injection, mold build, wire harness, cable assembly, box build assembly, etc.
    6. Components package: Passive components from 01005, 0201,0402 to above; Active components from 0.2mm pitch; BGA (Ball Grid Array) above 0.2mm pitch no limits for other components.
    7.Tests:Visual QC check, AOI inspection, X-ray test to BGA, Software burning/ IC programming, ICT, Jig Test, Functional test, Aging test, EMI /ROHS/ REACH tests on request.
    8. Board Dimension For SMT:Min Board Size: 45mm x 45mm (Boards smaller than this size need to be panelized, and we suggest than more than 100mm*100mm for improve efficiency).
    • Max Board Size: 400mm x 1200mm

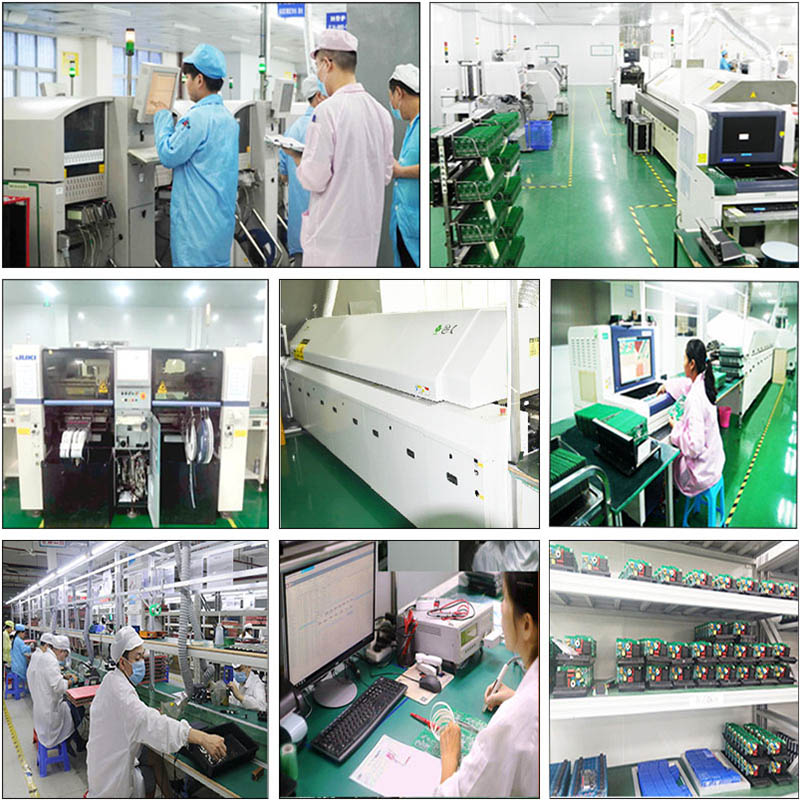

    PHILIFAST PCB ASSEMBLY WORKSHOP

    We mainly focus on OEM processing, ODM contract manufacturing services, and fully position one-stop manufacturing services for electronic products. With excellent technicians and quality management team, we can quickly solve various problems in the production process and customer feedback, strictly in accordance with the ISO9001 management system to ensure continuous and stable product quality.

    We mainly focus on OEM processing, ODM contract manufacturing services, and fully position one-stop manufacturing services for electronic products. With excellent technicians and quality management team, we can quickly solve various problems in the production process and customer feedback, strictly in accordance with the ISO9001 management system to ensure continuous and stable product quality

    78

    Main Product:

    prouts1

    Our Shippment:

    prouts

    This is depending on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on. Our forwarder can provide too much better freight cost than we get directly from those express enterprise.
