China OEM Supply PCBA Prototype Manufacturer Electronic PCB Assembly Service 4 Layer PCB Fabrication For Defense and Military Industry

Short Description:

Order Requests: Qty. PCB Specification.

Necessary Files: PCB Gerber, BOM, Pick&Place Files

Others: Assembly drawings, Other requirements

Send email to us Send email to us

Product Detail

Product Tags

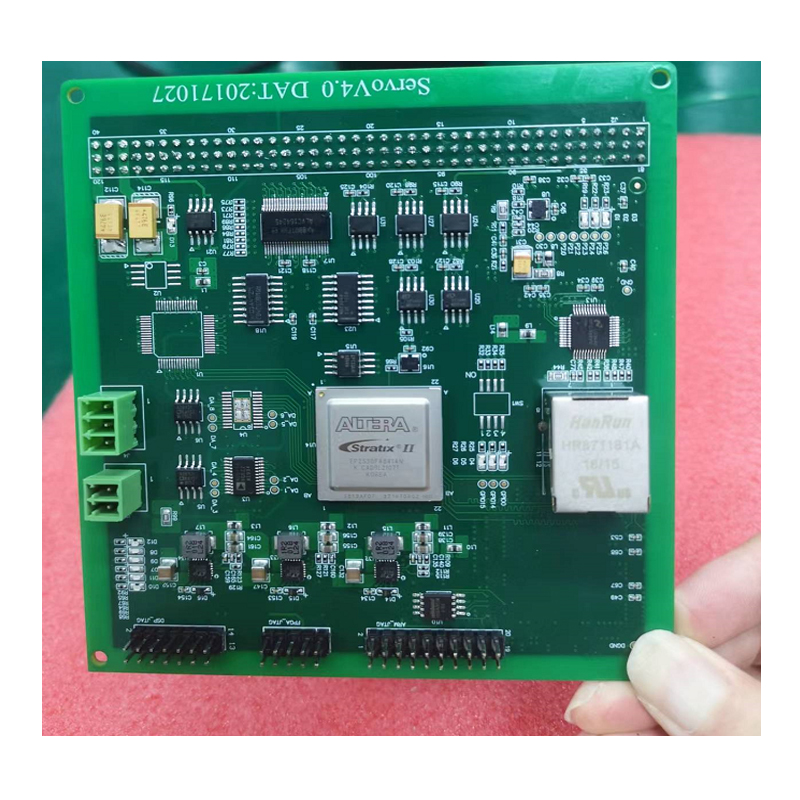

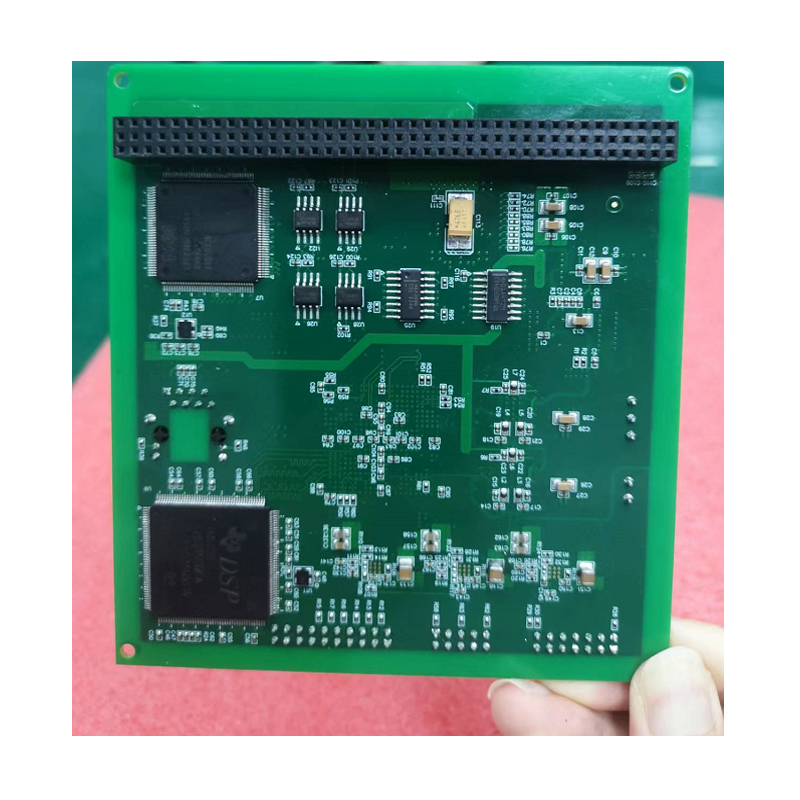

PRODUCT SPECIFICATION：

Base Material:	FR4-TG150	Surface Finish:	HASL(Lead Free)
PCB Thickness:	2.0mm	Solder Mask:	Green
PCB Size:	105*108mm	Silkscreen:	White
Layer Count:	4 Layer	Cu Thickness	35um(1oz)
Mounting Type：	SMT+DIP	SMT Package	BGA, QFN
Testing Service	AOI,X-Ray,Function Test	Supplier type	Assembly factory

Turnkey Sevices:

1. PCB fabrication: 1-32L PCB,HDI PCB,Aluminum-base PCB,FPC,Rogers PCBs...

2. Components supply: all resistors, compacitors, chips based on brand, connectors, and any other kinds of parts(Providing the components price details based on BOM files. all parts are speculated and used under permission.)

3. PCB assembly: SMT and through-hole assembly

4. IC program and Function test and finished product assembly.

Product Details:

Application

1, Consumer Electronics

2, Computer accounting, communication

3, Industrial control, automotive electronics

4, Medical equipment

5, Defense and Aerospace

PCBA PROCESSING CAPABILITY:

Turnkey PCBA	PCB+components sourcing+assembly+package
Assembly details	SMT and Thru-hole,PCB enclosure assembly
Lead Time	Prototype: 10-12 working days. Mass order: 18~20 working days
Testing on products	Flying Probe Test,E-Testing, X-ray Inspection, AOI Test, Functional test
Quantity	Min quantity: 1pcs. Prototype, small order, mass order
Files type	PCB: Gerber files(CAM, PCB, PCBDOC)
	Components: Bill of Materials(BOM list)
	Assembly: Pick&Place file, Assembly drawing
PCB Panel Size	Min size: 0.250.25 inches(66mm)
PCB Panel Size	Max size: 2020 inches(500500mm)
PCB Solder Type	Water Soluble Solder Paste, RoHS lead free
Components details	Passive Down to 01005 size
	BGA and QFN For Chip
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	Part Removal and Replacement
Component package	Cut Tape,Tube,Reels,Loose Parts

PCB PROCESSING CAPABILITY:

1	Layers	1-32 Layer
2	Board material type	FR4,Ceramic substrate board,aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	600 x 1200mm
5	Board thickness coverage	0.2 to 6.00mm
6	Minimum line width	3mil
7	Minimum line space	3mil
8	Outer layer copper thickness	8.75 to 175µm
9	Inner layer copper thickness	17.5 to 175µm
10	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
11	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
12	Hole diameter tolerance (mechanical drill)	0.05mm
13	Hole position tolerance (mechanical drill)	0.075mm
14	Laser drill hole size	0.10mm
15	Board thickness and hole diameter ratio	10:1
16	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
17	Minimum solder mask	Ø0.10mm
18	Minimum size of solder mask separation ring	0.05mm
19	Solder mask oil plug hole diameter	0.25 to 0.60mm
20	Impedance control tolerance	±10%
21	Surface finish	HASL(Lead Free), ENIG, immersion silver, gold plating, immersion tin and gold finger

Fast Delivery:

PCB Prototype In 12Hours
PCBA Assembly In 3Days

PCB Assembly Procedures:

* Program Management
PCB Files → DCC → Program Organizing → Optimization → Checking
* SMT Management
PCB Loader → Screen Printer → Checking → SMD Placement → Checking → Air Reflow → Vision Inspection → AOI → Keeping
* PCBA Management
THT→Soldering Wave (Manual Welding) → Vision Inspection → ICT → Flash → FCT → Checking → Package → Shipment

PHILIFAST always provides the best PCB manufacture and assembly experience

From quotation processing, engineering advice, order production, to product after-sales, our professional sales and engineering team will provide you with full service

Any question, Just send us email: sales@fljpcb.com
