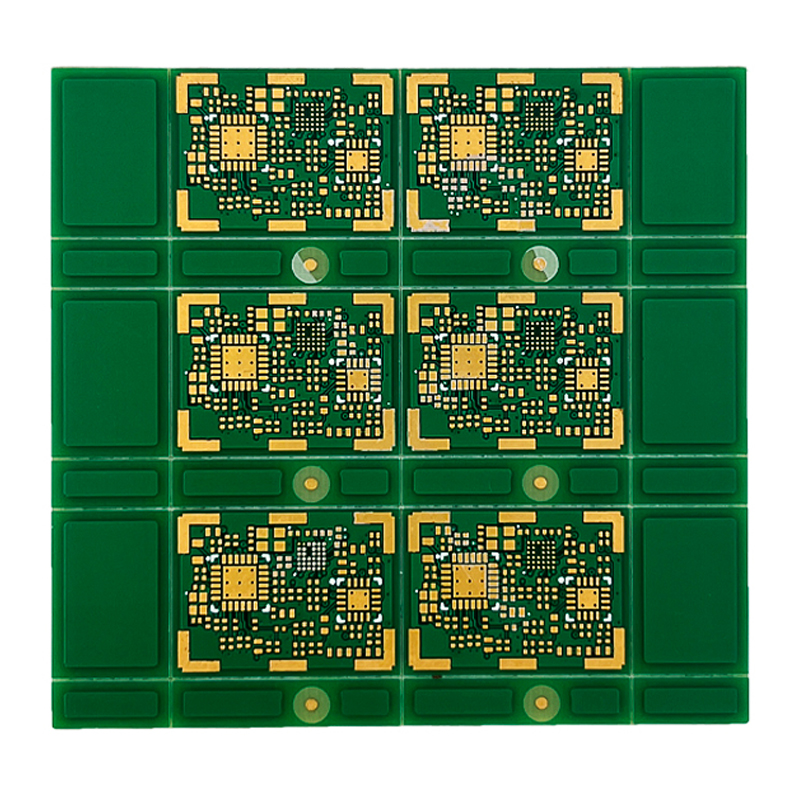

China 1-32multilayer Fr4 Printed Circuit Board, Blind And Buried Holes Immersion Gold HDI Pcb Circuit Board Manufacturing

Short Description:


  • Order Requests: Qty. PCB Specification.
  • Necessary Files: PCB Gerber, BOM, Pick&Place Files
  • Others: Assembly drawings, Other requirements
  • Product Detail

    Product Tags

    PRODUCT SPECIFICATION:

    Base Material: FR4-TG140 Surface Finish: ENIG
    PCB Thickness: 1.6mm Solder Mask: Green
    PCB Size: 60*72mm Silkscreen: White
    Layer Count: 4/L Cu Thickness 35um(1oz)
    2

    To ensure an accurate quote, be sure to include the following information for your project:

              •Complete GERBER files including the BOM list
              •Other file types (Altium,Protel,OrCAD)
              •"Read Me" notes for additional fabrication information
              •Quantities
              •Turn time
              •Panelization Requirements
              •Materials Requirements
              •Finish requirements

    Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

    OEM Finished product assembly

    1. One-step service

    2. Can be customized according to customer requirements packaging equipment.

    3. Processing of semi-finished products

    4. Finished product assembly

    5.Check completed

    6.Shipping

    Our Capability:

    Product Name  Module PCB
    Type  Rigid PCB
    Material   FR4, Aluminum,Copper,Rogers, PI, PET, ect...
    Layer   1,2,4,6...32Layer
    Shape   Rectangular, Round, Slots, Cutouts, Complex, Irregular
    Cutting   Shear, V-score, Tab-routed
    Board Thickness   0.2-4mm, regular 1.6mm
    Copper Thickness   0.5-4oz, regular 1oz
    Solder Mask   Green,Matt Green, Black, Matt black, Red, Blue, Yellow, etc.
    Silk Screen   White, Black, etc.
    Silk Screen Min Line Width   0.006" or 0.15mm
    Min Trace/Gap   0.1mm or 4mils
    Min Drill Hole Diameter   0.01",0.25mm or 10mils
    Surface Finish   HASL, ENIG, OSP, etc.

    APPLICATION FIELD:

    PCB are customized as per customers design files,widely used in automotive electronics, communications industry, industrial control, medical, power and energy, LED lighting, solar panels, safety monitoring and semiconductor fields.
